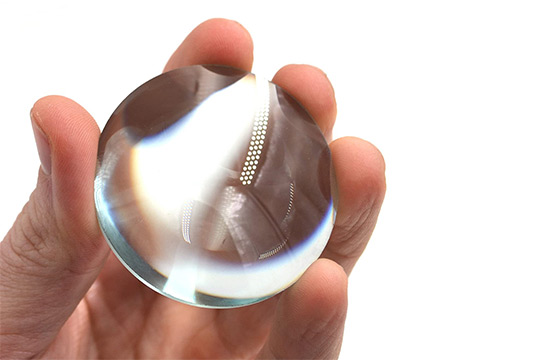

What are Sapphire Domes?
Sapphire Domes – Commercial Off The Shelf Solutions
Dimensions in Inches H = Height CT= Center Thickness
| Part | Dia. | R1 | R2 | H | CT | Power/Irreg. | S/D | Note |
|---|---|---|---|---|---|---|---|---|
| 1166 | 1.575 | 0.787 | -0.709 | 0.846 | 0.079 | 3fr over any 1.181 | 80/50 | > Hemi |
| 1167 | 1.575 | 0.787 | -0.709 | 0.846 | 0.079 | 1fr over any 2.000 | 60/40 | > Hemi |
| 3511 | 1.732 | 0.866 | -0.787 | 0.728 | 0.079 | 3fr over any 1.181 | 60/40 | < Hemi |
| 3512 | 1.732 | 0.866 | -0.787 | 0.728 | 0.079 | 1fr over any 2.000 | 60/40 | < Hemi |
| 9944 | 1.800 | 0.905 | -0.827 | 0.905 | 0.079 | 4fr over any 1.575 | 80/50 | Hemi |
| 1168 | 1.969 | 0.984 | -0.906 | 1.024 | 0.079 | 3fr over any 1.181 | 80/50 | > Hemi |
| 1169 | 1.969 | 0.984 | -0.906 | 1.024 | 0.079 | 1fr over any 2.000 | 60/40 | > Hemi |
| 9903 | 2.000 | 1.000 | -0.910 | 1.000 | 0.090 | 4fr over any 1.969 | 80/50 | Hemi |
| 1170 | 2.362 | 1.181 | -0.984 | 1.142 | 0.197 | 3fr over any 1.181 | 60/40 | < Hemi |
| 1171 | 2.362 | 1.181 | -0.984 | 1.142 | 0.197 | 1fr over any 2.000 | 60/40 | < Hemi |
| 7511 | 2.600 | 1.299 | -1.181 | 1.299 | 0.118 | 3fr over any 1.181 | 60/40 | Hemi |
| 7512 | 2.600 | 1.299 | -1.181 | 1.299 | 0.118 | 1fr over any 2.000 | 60/40 | Hemi |
| 4001 | 2.953 | 1.476 | -1.358 | 1.476 | 0.118 | 3fr over any 1.181 | 60/40 | Hemi |
| 4002 | 2.953 | 1.476 | -1.358 | 1.476 | 0.118 | 1fr over any 2.000 | 60/40 | Hemi |
| 9902 | 3.000 | 1.500 | -1.410 | 1.500 | 0.090 | 4fr over any 1.969 | 80/50 | Hemi |
| 8203 | 3.300 | 1.650 | -1.532 | 1.650 | 0.118 | 3fr over any 1.181 | 60/40 | Hemi |
| 8204 | 3.300 | 1.650 | -1.532 | 1.650 | 0.118 | 1fr over any 2.000 | 60/40 | Hemi |
| 8201 | 3.300 | 1.650 | -1.512 | 1.650 | 0.138 | 3fr over any 1.181 | 60/40 | Hemi |
| 8202 | 3.300 | 1.650 | -1.512 | 1.650 | 0.138 | 1fr over any 2.000 | 60/40 | Hemi |
| 4003 | 3.346 | 1.673 | -1.575 | 1.555 | 0.098 | 3fr over any 1.181 | 60/40 | < Hemi |
| 4004 | 3.346 | 1.673 | -1.575 | 1.555 | 0.098 | 1fr over any 2.000 | 60/40 | < Hemi |
| 4601 | 3.940 | 1.988 | -1.870 | 1.988 | 0.118 | 3fr over any 1.181 | 60/40 | Hemi |
| 4602 | 3.940 | 1.988 | -1.870 | 1.988 | 0.118 | 1fr over any 2.000 | 60/40 | Hemi |
| 4603 | 3.940 | 1.988 | -1.831 | 1.988 | 0.157 | 3fr over any 1.181 | 60/40 | Hemi |
| 4604 | 3.940 | 1.988 | -1.831 | 1.988 | 0.157 | 1fr over any 2.000 | 60/40 | Hemi |
| 9141 | 3.940 | 1.969 | -1.811 | 3.150 | 0.157 | 3fr over any 1.181 | 80/50 | Hyper – 240° |
| 4705 | 4.000 | 2.000 | -1.520 | 2.000 | 0.480 | 3fr over any 1.181 | 60/40 | Hemi |
| 4706 | 4.000 | 2.000 | -1.520 | 2.000 | 0.480 | 1fr over any 2.000 | 60/40 | Hemi |
| 1021 | 4.500 | 2.953 | -2.827 | 0.787 | 0.126 | 3fr over any 1.181 | 60/40 | < Hemi |
| 1022 | 4.500 | 2.953 | -2.827 | 0.787 | 0.126 | 1fr over any 2.000 | 60/40 | < Hemi |
| 9011 | 5.900 | 2.953 | -2.756 | 3.937 | 0.197 | 3fr over any 1.181 | 80/50 | Hyper – 240° |
| 9031 | 9.000 | 4.528 | -4.291 | 4.724 | 0.236 | 3fr over any 1.181 | 80/50 | Hyper – 240° |
Wedge ≤ .00315″
Power and Irreg. is per side
CA: 90%
All Tolerances: ±.004″
Specifications
| Diameter: | From 40 mm (1.575”) to 240 mm (9.450”) |
|---|---|
| Wall Thickness: | As thin as 2mm, but varies by diameter |
| Clarity: | Clear field of view with no scratches or impurities |
| Hyper Hemispheres | Up to 240° Domes available |
| Common Use: | Used to protect cameras that need a 360° field of view |
| Quantities: | From singles to full large scale production runs |
| Commercial Sapphire Domes | Off the shelf designs for plug and play applications |
| Custom Sapphire Domes | Customer designed domes are also able to be manufactured |
